Properties of Ceramic Materials The term "ceramic" originates from the ancient Greek word *"kéramos,"* meaning "clay" or "fired pottery," and its manufacturing essence lies in high-temperature sintering. These properties make ceramics an ideal material for bearings: high hardness, wear resistance, and electrical insulation. As early as the 1960s and 1970s, the first ceramic bearings were developed in the U.S. Today, they are widely used in aerospace, medical, and automotive industries, with growing market demand driven by advancements in electric vehicle technology. |
|

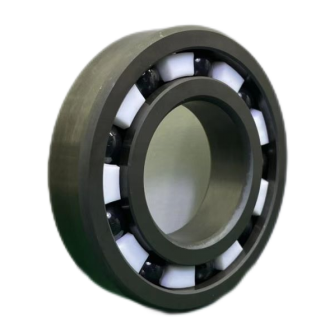

Hybrid & Full-Ceramic Bearings Compared to standard steel bearings, ceramic bearings are lighter and have a longer lifespan. They are mainly categorized into two types: -Hybrid bearings, such as the Schaeffler HC series, feature ceramic rolling elements (balls or rollers) paired with steel inner and outer rings. - Full-ceramic bearings contain no metal components and are typically made of silicon nitride or zirconium oxide . Both types offer three key advantages: Excellent electrical insulation, High-speed capability & Exceptional wear resistance. |
 |
|
Insulation & Non-Magnetic Properties The insulating nature of ceramic materials is critical for generators, traction motors, and other electrical equipment, as the ceramic rolling elements in hybrid bearings effectively block current flow. Additionally, full-ceramic bearings are non-magnetic, making them ideal for medical devices.
Corrosion & High-Temperature Resistance Hybrid bearings with stainless steel rings (e.g., Schaeffler XC series) outperform steel bearings in corrosion resistance, enduring exposure to water, detergents, and various chemicals while withstanding higher operating temperatures. For the same dimensions, ceramic bearings allow higher rotational speeds—hybrid types, in particular, offer greater stability under overload or overspeed conditions due to the superior toughness of their steel rings.
Extended Service Life Ceramic balls have lower density yet significantly higher hardness than steel balls. Their outstanding wear resistance crushes microscopic contaminants that enter the bearing. Ultra-low rolling resistance minimizes heat generation, extending lubricant life. Hybrid bearings perform better than steel bearings under poor lubrication, while full-ceramic variants can even operate without lubrication.
Limitations of Ceramic Bearings Despite their superior wear resistance and extreme-condition adaptability, ceramic bearings are not a universal solution: - Lower load capacity than steel bearings—ceramic rolling elements deform less due to higher hardness, resulting in smaller contact ellipses. - Steel bearings offer **better thermal shock resistance。 - Most notably, ceramic bearings are considerably more expensive due to complex, energy-intensive raw material processing and longer production cycles. Choose based on your specific application needs! |
