Angular contact ball bearings are divided into angular row angular contact ball bearings and double row contact ball bearings, The unique structural design (contact Angle is generally 15°, 25°, 30° or 40°) makes it bear both radial and axial loads, especially suitable for composite loads or pure axial load scenarios.
Angular contact ball bearings are divided into angular row angular contact ball bearings and double row contact ball bearings, The unique structural design (contact Angle is generally 15°, 25°, 30° or 40°) makes it bear both radial and axial loads, especially suitable for composite loads or pure axial load scenarios. The following are its characteristics and typical application range:

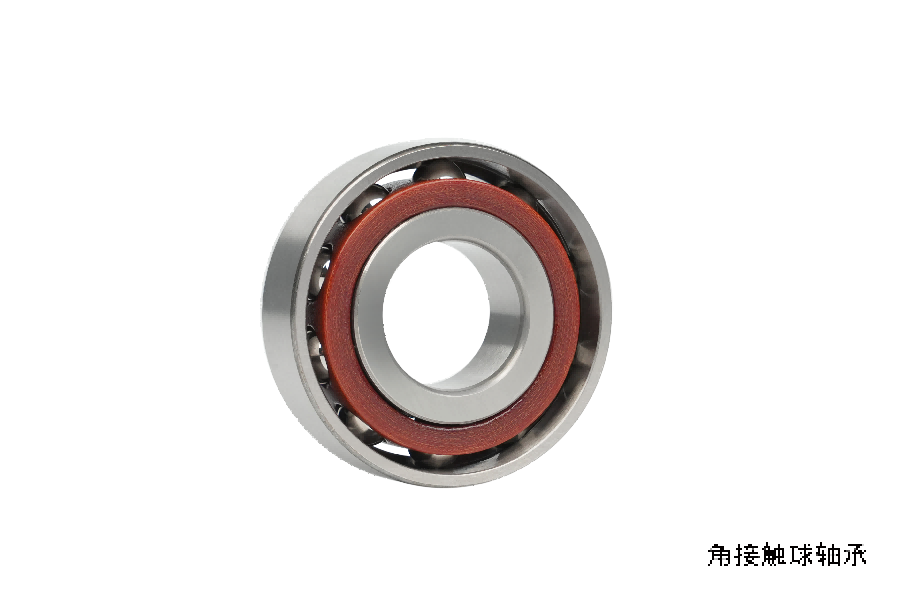

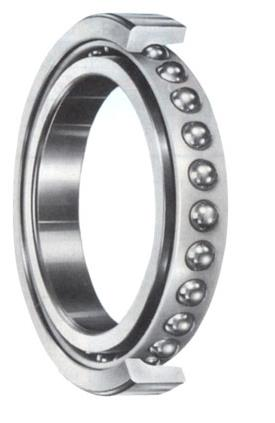

Single row angular contact ball bearing
Double row angular contact ball bearing
Application
Machine spindle: The spindle system of high-speed lathes, milling machines, grinding machines, which required to withstand radial cutting forces and axial feed forces. The rigidity and accuracy of angular contact bearings (such as P4/P2 class) ensure machining accuracy.
Motorized spindles: Integrated motor spindles for CNC machine tools that rely on angular contact bearings used in groups (such as DB/DF configurations) for high-speed rotation (up to tens of thousands of RPM).
Auto parts:
Hub unit (part of the design uses double row angular contact bearings),
Turbocharger (axial thrust under high temperature & high speed environment),
Clutch release bearing.
Pumps and compressors: centrifugal pump shaft, air compressor rotor, need to deal with the axial force generated by the fluid.
Gear box: Supporting gear shaft in wind power gear box and industrial reducer, resisting radial force and axial force generated by meshing.
Robot joints: In a collaborative robot harmonic reducer or RV reducer, angular contact bearings provide high rigidity and reduce motion return.
Pairing configuration (DB/DF/DT) :
Dual (DB: back-to-back) enhanced torque rigidity for machine tool spindles.
Triple (DT: series) to increase the axial load capacity, suitable for aircraft engines.
Example:
The spindle of CNC machining center often uses 2-4 pairs of bearings.
Precision lead screw support end (combined with thrust bearing).
5. Special industry applicationAerospace: Aircraft landing gear, aeroengine accessories, using superalloy or ceramic bearing materials.
Extreme conditions:
The vacuum environment (semiconductor equipment) uses solid lubrication.
Corrosion resistant scenario (chemical pump) use stainless steel bearings.
Key parameters of selection
Contact Angle selection:
15° (high speed light load, such as grinder spindle)
25°-30° (General industrial equipment)
40° (Heavy axial loads, such as crane hooks)
Preload adjustment: Precision equipment needs to eliminate the backlash by preloading and improve the system stiffness.
Angular contact ball bearings are irreplaceable in high-end equipment manufacturing through flexible combinations and parameter optimization, especially in cases where speed, precision and load need to be balanced.
As a bearings products manufacturer, we can make the material & size customization as customer's bearing performance &accuracy requirements, and also provide you with samples for testing before bulk purchase. Please contact us.
Product Advantages
Controlled Load Distribution in Axial Systems
The angular contact configuration offers specific directional load support, enhancing overall system balance. This trait is valuable when bearings are installed in pairs or multi-unit series. These features help gear manufacturing teams and ball bearing supplier partners minimize torque variation and misalignment risks in dynamic systems.
Reduced Friction and Thermal Deformation
By integrating closely matched raceway and ball profiles, the bearing minimizes internal sliding and frictional heat. This design prolongs grease life and minimizes temperature-induced deformation. These advantages support bearing manufacturing environments where thermal consistency is critical to maintaining system efficiency.
Flexibility for Assembled or Standalone Use
Available in single and double-row versions, the bearing accommodates both one-directional and bi-directional axial loads. Whether mounted individually or in combination, the structure ensures predictable behavior under varying load paths. This supports gearbox suppliers and bearing wholesalers aiming to reduce inventory variation while meeting different client specs.
About Us
AroroTech is a professional bearing manufacturer with over 20 years of experience in developing and delivering high-performance bearing products. The company specializes in angular contact ball bearings, tapered roller bearings, and deep groove solutions, serving clients across automotive, industrial, and mechanical transmission sectors. Through an integrated approach encompassing research, machining, inspection, and logistics, AroroTech provides scalable production and support for both standard and specialized needs. Its facilities are equipped with testing systems and high-precision machinery to ensure accuracy and reliability across product lines. Serving global sourcing partners and gear manufacturing sectors, AroroTech maintains a reputation for consistency, structural integrity, and supply chain reliability.
FAQ
What is the typical contact angle range of this bearing?
It ranges from 15° to 40°, allowing combined axial and radial load support for gear manufacturing use.
Can the bearing be paired for higher axial loads?
Yes, it is designed for tandem or back-to-back pairing, supporting systems used by ball bearing supplier and machinery firms.
What material is used for the raceways?
The raceways are made of hardened bearing steel and precision-ground to tight tolerances, which supports long-term use in bearing manufacturing.
Does AroroTech offer sealed variants of this bearing?
Yes, both open and sealed structures are available to meet needs of gearbox suppliers and assembly-specific requirements.
Is this bearing suitable for high-speed rotation systems?
Yes, its design minimizes friction and supports high-speed operation in shaft and spindle setups, common to bearing wholesalers.
Request a quote today for angular bearings tailored to gear manufacturing and ball bearing supplier system requirements!
