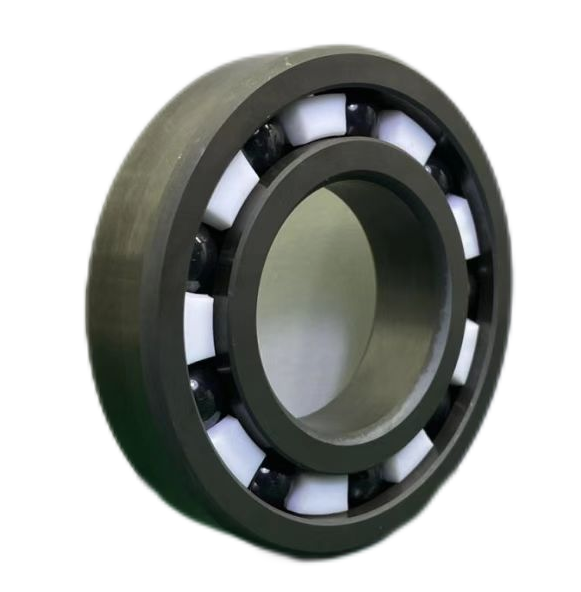

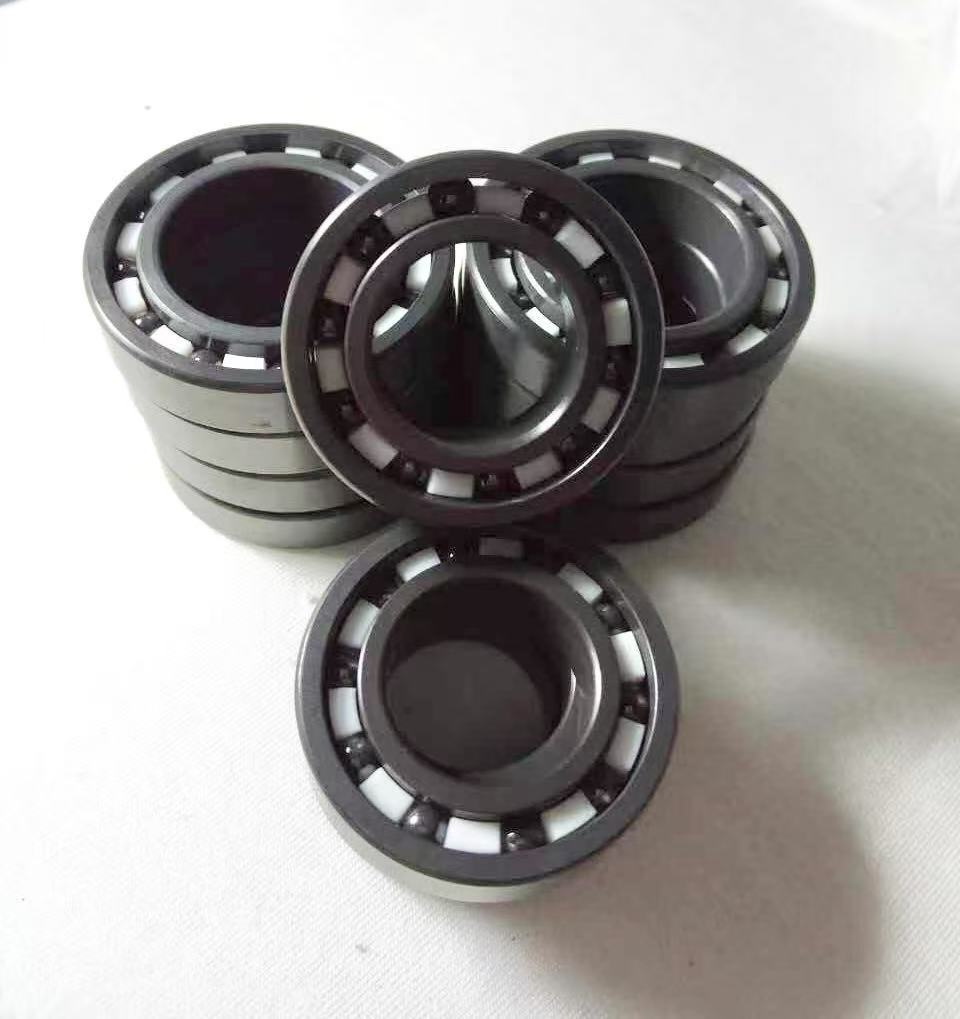

Ceramic Deep Groove Ball Bearings

Ceramic bearings, with their unique material properties, are increasingly becoming a critical alternative to traditional steel bearings in industrial applications. Below is a detailed analysis of their core characteristics and typical use cases.

  Characteristics of Ceramic Bearings

1. Exceptional High-Temperature Resistance

 Temperature Range: Silicon nitride (Si₃N₄) and zirconia (ZrO₂) ceramic bearings can operate stably in environments exceeding 600°C (compared to steel bearings, which typically max out at 150°C).
Applications: Ideal for extreme conditions such as high-temperature furnaces and turbine shafts in aircraft engines.

2. Superior Corrosion Resistance

  Inert Material: Alumina (Al₂O₃) ceramics are nearly impervious to acids, alkalis, and seawater, offering 3-5 times longer service life than stainless steel bearings.
 Case Study: Bearings in chemical pumps and desalination equipment exhibit over 200% longer lifespan in highly corrosive media.

3. Lightweight and High-Speed Performance

   Density Advantage: Silicon nitride has only 40% the density of steel, enabling 30%-50% higher rotational speeds (e.g., DN values reaching 3×10⁶ mm·r/min).  Typical Use: High-speed spindles in CNC machines (e.g., Swiss IBAG spindles using hybrid ceramic bearings).

4. Electrical Insulation and Non-Magnetic Properties

   Resistivity: Alumina ceramics exhibit resistivity >10¹⁴ Ω·cm, completely eliminating electrical erosion.
   Applications: MRI equipment bearings and insulated bearings in wind turbine generators.

5. Wear Resistance and Extended Lifespan.  Hardness Comparison: Si₃N₄ hardness (HV1500) far exceeds bearing steel (HV700), reducing wear rates by 80%.


Industrial Applications

1. High-End Manufacturing Equipment

  CNC Machines**: Hybrid ceramic bearings (steel rings + ceramic balls) enable spindle speeds exceeding 50,000 rpm, improving precision retention by 60%.  Example: Japan’s NSK Ultra-Clean series ceramic bearings are used in semiconductor wafer cutting machines.

   2. Energy and Heavy Industry

   Wind Power: SKF’s Insocoat® insulated ceramic-coated bearings reduce generator shaft current failures by 90%.
   Oil Drilling: Silicon carbide (SiC) bearings last 5 times longer than steel bearings in sand-laden drilling mud.

   3.Medical and Specialized Equipment

   Medical Imaging: Zirconia bearings in MRI systems ensure zero magnetic interference, with specialized lubrication solutions from Schaeffler.   Food Processing: FDA-approved alumina bearings in dairy filling lines withstand steam cleaning.

4. Aerospace and Defense

   Aircraft Engines: NASA-validated Si₃N₄ bearings in F119 engines reduce weight by 35% and fuel consumption by 8%.
  Missile Guidance: Ceramic bearings in inertial navigation systems endure 10,000g shocks.

5. New Energy and Transportation

   Electric Vehicles: Tesla motors use ceramic ball bearings to mitigate electrical erosion (Patent US20180229745A1).

   Maglev Trains: Alumina bearings support cryogenic superconducting magnets, operating stably at -200°C.

Future Trends

1. Material Innovations: Graphene-reinforced ceramic composites could enhance thermal conductivity and toughness (currently in R&D).
2. 3D Printing Applications: Direct fabrication of complex ceramic bearings, such as GE’s topology-optimized ceramic bearing housings.
3. Smart Integration: Self-monitoring bearings with embedded ceramic sensors (e.g., NTN’s Smart Bearing concept).

Ceramic bearings are redefining reliability standards in high-end industrial equipment through material breakthroughs. Despite higher costs, their irreplaceability in critical applications makes them a key enabler of modern industrial advancements.
