Cross bearing, RV reducer bearing, harmonic reducer bearing and four-point contact and other flexible bearings, because of their high precision, high rigidity, long life and lightweight characteristics, in the field of humanoid robots, robot dogs (quadruped robot) has been widely used, mainly in the joint, waist, arm, leg joint, hip joint, knee joint and other core motion parts.
|

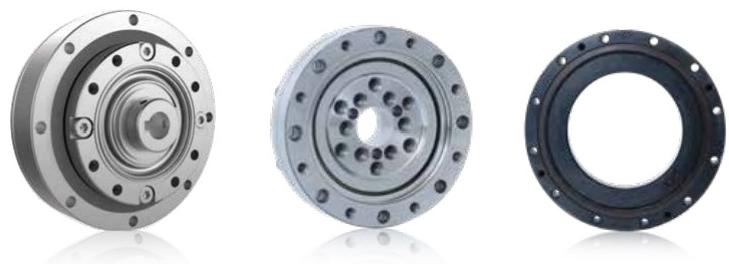

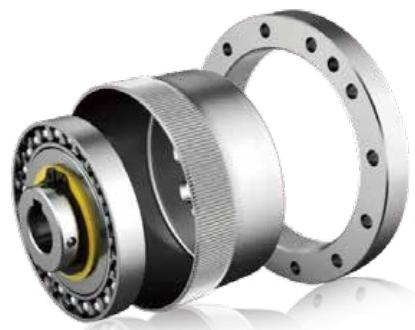

Special bearings for robot reducer Robot reducer has the characteristics of high precision, high rigidity, high load, high speed ratio, high life, low inertia and low vibration, low noise, low temperature rise, compact structure, simple installation, etc. At present, there are two main kinds of robot reducer field, one is harmonic reducer, the other is RV reducer. Bearings, as one of the core parts in the reducer, are also divided into the following categories according to the reducer, which are cross roller bearings with harmonic reducer, flexible bearings with harmonic reducer, and angular contact ball bearings with RV reducer. The cross roller bearing for harmonic reducer contains four series, CSG(CSF) series, CSD series, SHG(SHF) series, SHD series, and its naming method adopts the name of the reducer; The name of the flexible bearing of the harmonic reducer is HYR, and the name of the main bearing of the RV reducer is RV. Cross roller bearings for harmonic retardersHarmonic reducer with cross roller bearings according to its use occasion is divided into outer ring split inner ring whole, outer ring, inner ring are the whole two categories, the rolling body is cylindrical roller, each into 90° vertical arranged in the V raceway, the bearing of this structure can bear axial load, radial load and overturning moment and other loads in all directions. Bearings have high accuracy, high rigidity and composite load capacity.
The outer ring is divided into two pieces, the inner ring is the whole structure, the installation does not need flange and bearing seat, mainly used in the output part of CSG and CSF series reducer.
The outer ring and the inner ring are the whole structure, the outer diameter and the CSG type are the same, and the CSG type shaft bearing has higher rigidity, which is mainly used in the output part of the CSD series reducer.
The outer ring and the inner ring are the whole structure, the height is lower than the SHG, saving the installation space of the reducer, mainly used in the output part of the SHD reducer. |
 |
| Application Cross bearing, RV reducer bearing, harmonic reducer bearing and four-point contact and other flexible bearings, because of their high precision, high rigidity, long life and lightweight characteristics, in the field of humanoid robots, robot dogs (quadruped robot) has been widely used, mainly in the joint, waist, arm, leg joint, hip joint, knee joint and other core motion parts. These bearings can withstand complex multi-directional loads, provide high-precision |
