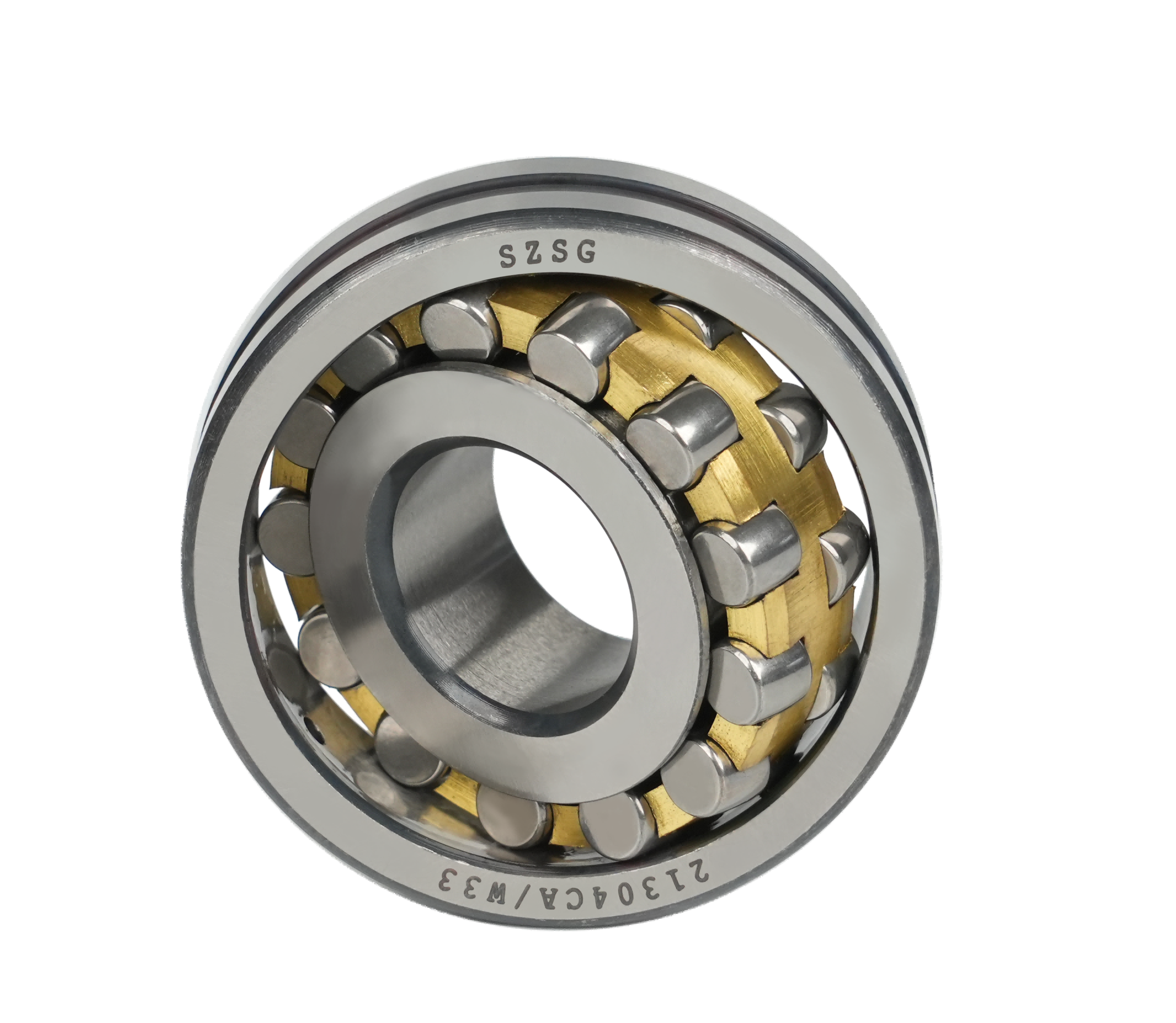

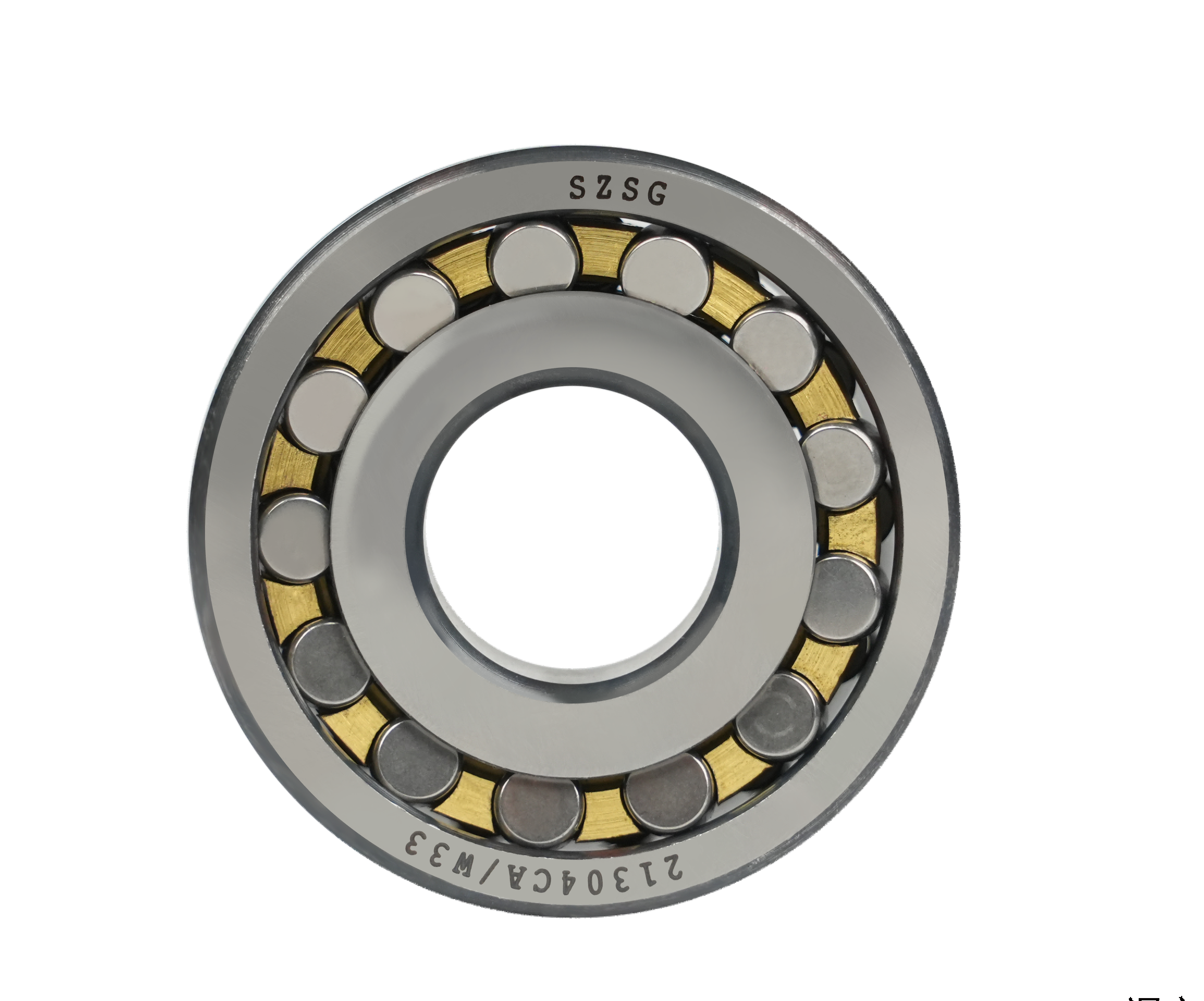

Name: Cylindrical Roller Bearings
Brand: Arorotech
Availability: InStock
Rating: 5 (1 reviews)

Description

Materials

We use High-End Bearing Steel, commonly using high-purity steels refined by Vacuum Arc Remelting (VAR) or Electro-Slag Remelting (ESR) (e.g., M50, M50NiL, CSS-42L, etc.). These materials possess extremely high purity, uniformity, and fatigue strength.

Ceramic Hybrid Technology is also a good option, Increasing adoption of full ceramic bearings (silicon nitride Si₃N₄ rollers + steel rings) or hybrid ceramic bearings (silicon nitride rollers + steel rings). The advantages of silicon nitride rollers include: Lightweight, High Stiffness, Low thermal expansion and corrosion Resistance.

Dimension we produce: ID: 1.5~200mm，Temperature resistance -196~650°C.

Cylindrical roller bearings are completely irreplaceable in aviation applications compared to other types of bearings, however lubrication is a core challenge. Typically, two lubrication methods are used:
Solid Lubrication: In extreme temperature environments (e.g., liquid hydrogen/liquid oxygen turbopumps) or for ultra-long-life, vacuum in-orbit mechanisms, solid lubricant coatings like Molybdenum Disulfide (MoS₂) or Tungsten Disulfide (WS₂) are employed. This usually sacrifices some ultimate performance.
Special Liquid Lubrication: In scenarios involving extreme speed, heavy load, but short-duration operation like rocket engine turbopumps, high-performance synthetic oils (e.g., Perfluoropolyether PFPE) are used. The core challenge lies in how to precisely and reliably deliver minimal oil to the friction contact points under ultra-high centrifugal force through special cage design and oil supply systems.

Simultaneously, these bearings require pefection in terms of accuracy class, surface roughness, and ultra-clean cleaning.

Application

The ideal application scenarios for cylindrical roller bearings are those requiring support for heavy rotors rotating at very high speeds, while simultaneously needing to isolate axial loads. Main application scenarios include:

Liquid Rocket Engine Turbopumps. This is the most classic and demanding application scenario. Turbopumps operate at extremely high speeds (tens of thousands of revolutions per minute), requiring support for massive impeller and rotor weights while bearing enormous radial force.

Application Method: Typically employs a “bearing pair" configuration. Namely: One set of double-row cylindrical roller bearings: Specifically designed to withstand huge radial loads and locate the rotor radially. One set of angular contact ball bearings: Specifically designed to withstand axial (thrust) loads and complete the axial positioning of the rotor.

Meanwhile, cylindrical roller bearings are also extensively used in Aircraft engines (power sections of space shuttles and aerospace), Spacecraft attitude control mechanisms, as well as Expanding structural and low-speed mechanism sections.

WHY US ?

46 years of experience in aerospace and precision bearing R&D.
Trusted raw materials: 80% sourced from leading U.S. and European steel and aluminum suppliers.
Advanced manufacturing: Equipped with high-temperature alloys (e.g., M50NiL) and Si3N4 ceramic balls, plus state-of-the-art lubrication technologies.
Certified quality: Meeting aerospace and aviation industry standards for safety and reliability.
Custom solutions: Tailored bearings for global OEMs, distributors, and aerospace projects.

Optimized Internal Design for Stability
This cylindrical roller bearing utilizes a finely-tuned structure composed of inner and outer rings paired with optimized rolling elements. The internal configuration enhances load-carrying capacity while minimizing friction, ensuring operational consistency under high-speed conditions. The bearing’s design integrates precisely aligned components that allow it to accommodate heavy radial loads without compromising rotational accuracy. These traits make it particularly valuable in environments where mechanical reliability and stability are critical, such as those handled by bearing manufacturers or gearbox manufacturing sectors.

Material and Surface Engineering
The bearing incorporates high-quality alloy steel for its raceways and rollers, ensuring durability under continuous stress. The surface finish is processed to a smooth, wear-resistant state to prolong the life cycle of the bearing while reducing maintenance frequency. This attention to surface uniformity supports improved lubrication retention, which further contributes to the bearing's operational efficiency. Companies operating as bearing suppliers or serving industrial gearbox manufacturers can rely on this component to meet consistent performance benchmarks.

Adaptability for High-Precision Assemblies
Thanks to its versatile design, this cylindrical roller bearing aligns well with a range of mounting setups and tolerances. Its dimensional accuracy enables seamless integration into larger assemblies requiring consistent rotation and minimized vibration. Its structural advantages cater to system designers and custom gearbox manufacturers, helping maintain system precision while minimizing thermal expansion and wear. Whether for replacement cycles or new systems, bearing wholesale clients can find the necessary consistency in product quality.

Product Advantages

Enhanced Load-Carrying Efficiency
The internal geometry of the cylindrical roller bearing maximizes surface contact between the rollers and raceways. This results in superior load distribution and enhanced resistance to wear and fatigue. These attributes are crucial for systems undergoing high radial stress, aligning with the needs of ball bearing manufacturers and gearbox suppliers. The bearing’s robust design ensures long-term operation without significant performance degradation.

Reliable Performance Across Variable Conditions
With carefully selected materials and precise machining, the bearing maintains dimensional stability even under temperature shifts and prolonged use. This trait is especially valuable for tapered roller bearing supplier operations or custom gearbox suppliers requiring consistent tolerance adherence. Its reliable build allows it to withstand speed variations and system vibrations, ensuring smooth mechanical continuity.

Minimal Maintenance with High Consistency
A streamlined structure reduces component complexity, minimizing potential failure points. The bearing’s polished surfaces and well-controlled clearances enable optimized lubricant flow, which enhances cooling and reduces friction. These features contribute to extended service intervals, making it a dependable choice for bearing supplier networks and gearbox manufacturer facilities that prioritize predictable maintenance cycles.

FAQ

What is the structural composition of AroroTech cylindrical roller bearings?
They include inner and outer rings, roller assemblies, and precise raceway alignment, allowing high radial load capacity.

Can these bearings be used in custom mechanical systems?
Yes, the bearings offer dimensional stability and smooth operation, making them suitable for custom gearbox suppliers and integrators.

Does AroroTech offer wholesale options for bulk orders?
Yes, the company works with bearing wholesale distributors and supports flexible procurement based on application volume.

What quality control processes are used during manufacturing?
All bearings undergo production checks, assembly testing, and performance inspections to ensure stable operation and tolerance control.

Are these bearings suited for gearbox-related applications?
Yes, their structure and material performance make them compatible with assemblies handled by gearbox suppliers and gearbox manufacturer teams.

Request a quote now and upgrade your supply chain with precision-fit bearings from trusted bearing manufacturers!
