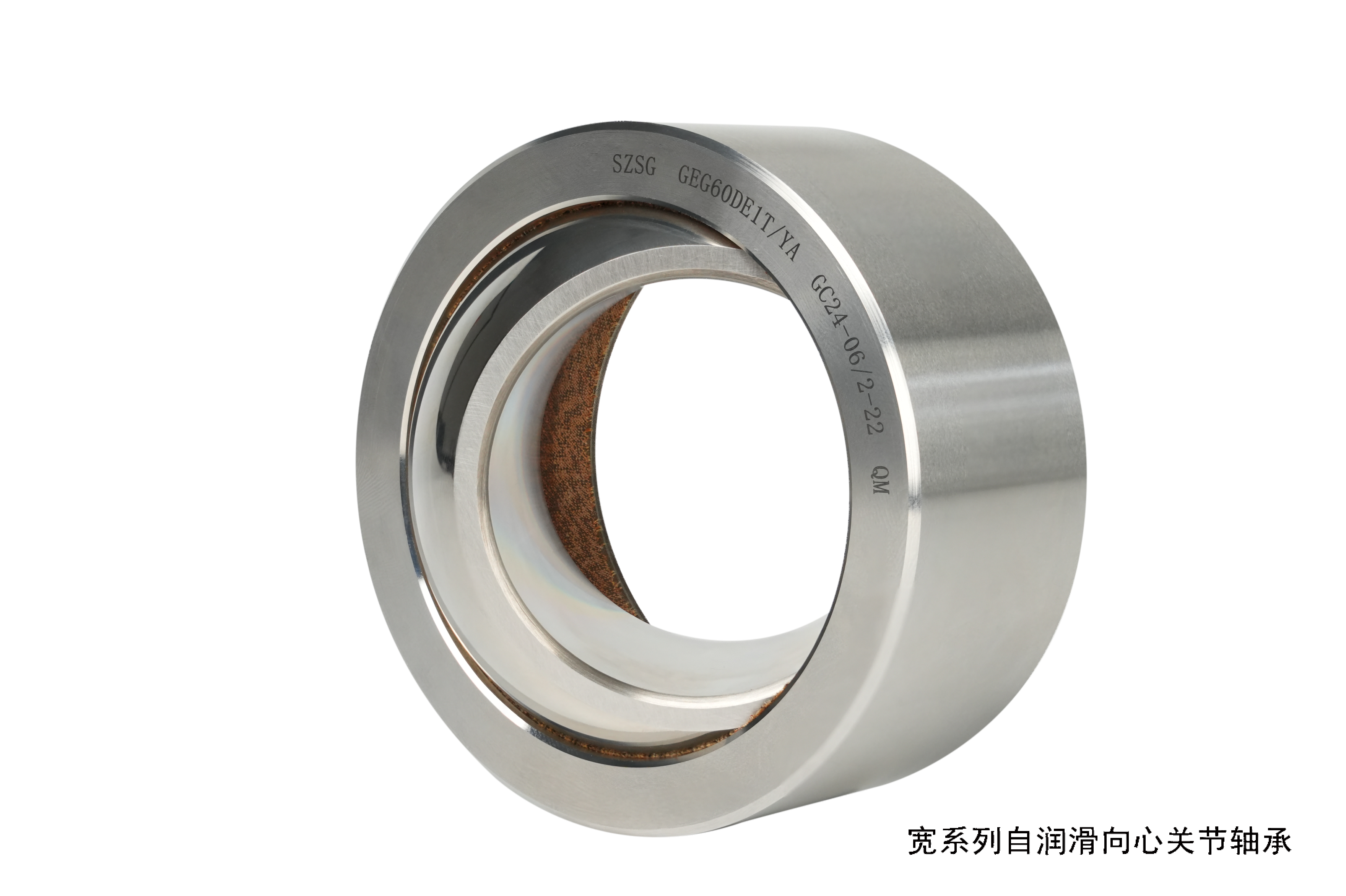

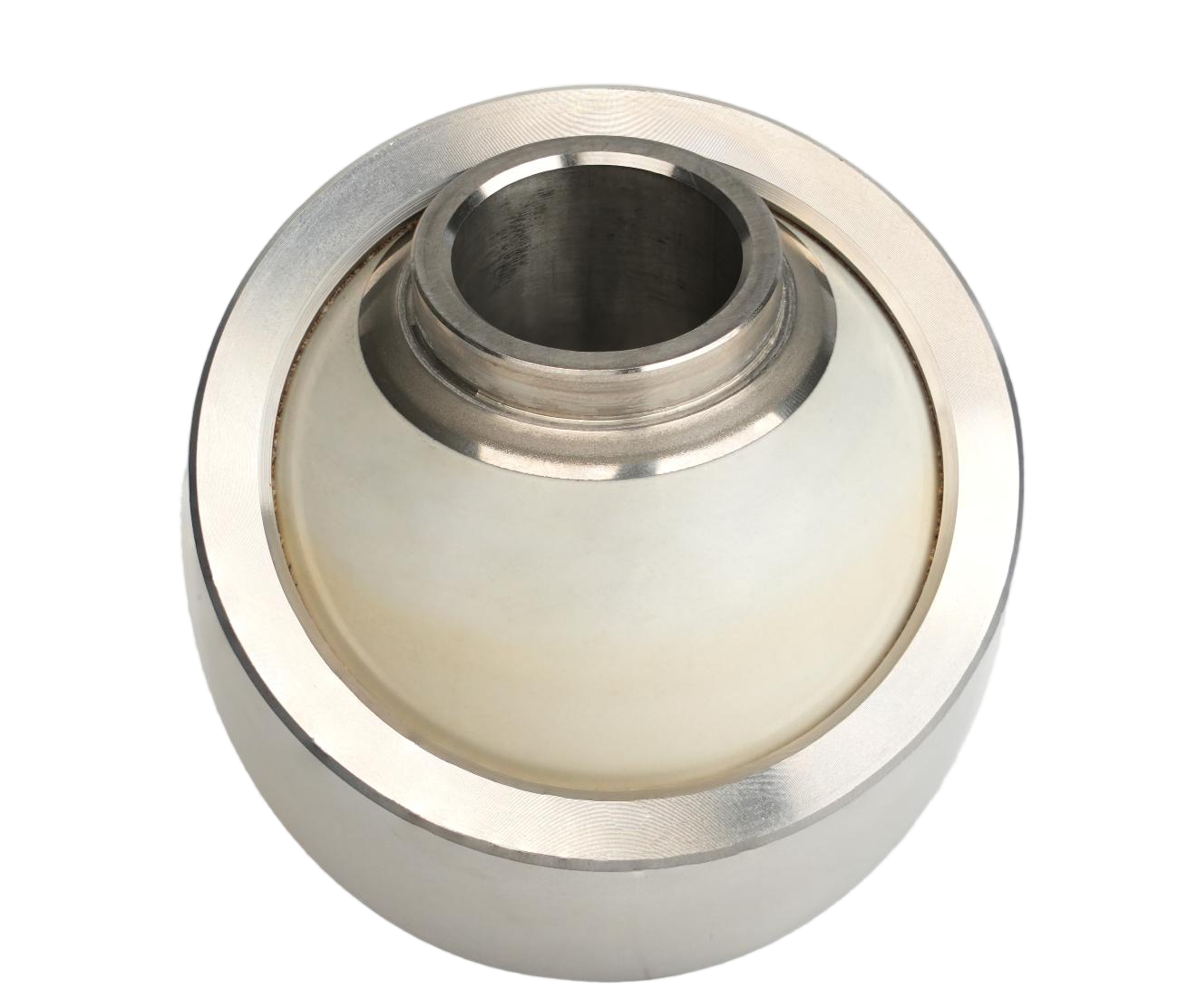

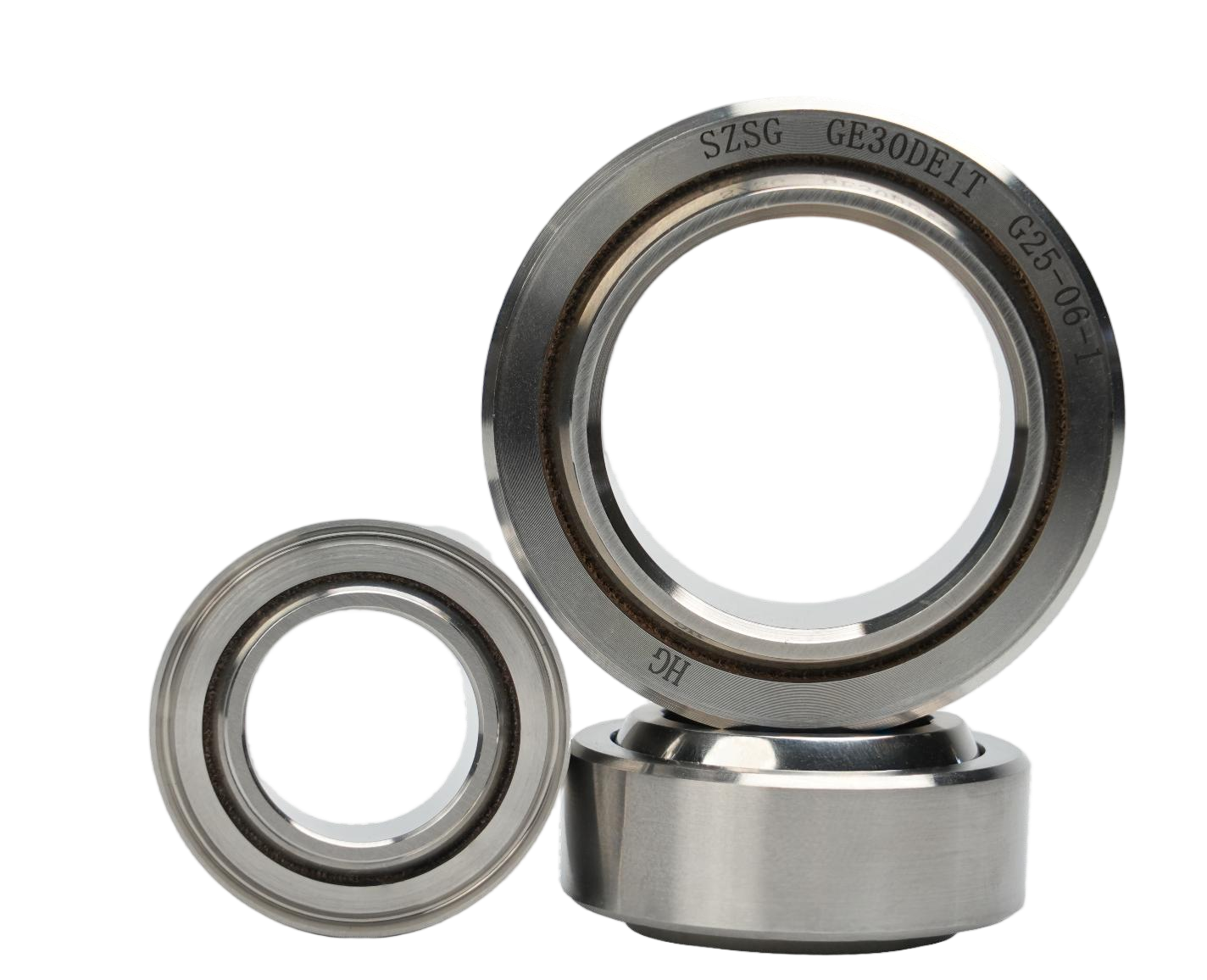

Name: Self-Lubricating Spherical Plain Bearing
Brand: Arorotech
Availability: InStock
Rating: 5 (1 reviews)

Description

Self-lubricating radial spherical plain bearings are not only used in aviation, but also represent a key technology enabling the high reliability, low maintenance costs, and superior performance of modern aircraft. Their presence can be found in everything from commercial airliners (such as Boeing and Airbus) to military aircraft, helicopters, and even spacecraft. Their design and manufacturing must comply with stringent aviation standards to ensure flight safety.

Our company's production specifications:

Size Range: 4 mm to 670 mm

Temperature Range: -55°C to 950°C

Aerospace-grade self-lubricating spherical plain bearings typically utilize the following types of lubrication layers:

PTFE (Polytetrafluoroethylene) Fiber Fabric Liner: This is the most common type. PTFE fibers are woven into a fabric and combined with materials such as phenolic resin to form a liner, which is then bonded to the inner surface of the bearing's outer or inner ring. PTFE possesses an extremely low coefficient of friction and excellent self-lubricating properties.

PTFE Composite Material Liner: PTFE is mixed with fillers (such as glass fibers, bronze powder, etc.) to create a liner material, offering improved wear resistance.

Solid Lubricant Coating: Solid dry film lubricants, such as Molybdenum Disulfide (MoS₂) or graphite, are sprayed onto the bearing's contact surfaces.

Application

Self-lubricating bearings have extensive applications in the aerospace and defense sectors:

Aircraft: Flight control systems (control surfaces), engine thrust reverser systems, landing gear retraction mechanisms, and door hinges.

Helicopters: Rotor systems (rotor hubs), tail rotor control systems. These components must withstand high-frequency oscillations and significant loads.

Missiles, Satellites, and Spacecraft: Solar panel deployment mechanisms, antenna pointing mechanisms, which require reliable operation in a vacuum and under alternating high and low temperatures.

Concurrently, self-lubricating spherical plain bearings are also widely used in:

The automotive industry (e.g., gearshift linkages in transmission systems).

Construction machinery and heavy equipment that operates in harsh environments and must support extreme loads.

Industrial automation, such as in robots and robotic arms (particularly the joints of six-axis robots).

High-Performance Self-Lubrication Layer
The self-lubricating spherical plain bearing is engineered for environments where traditional lubrication is impractical. Its liner options include PTFE fiber fabric, PTFE composite with fillers, and solid lubricant coatings like MoS₂ or graphite. These materials reduce friction and wear, offering long-term reliability. Manufactured to stringent aviation-grade specifications, this bearing benefits from processes established in bearing manufacturing and used widely by bearing wholesalers, enabling reduced maintenance and extended service life.

Aerospace-Grade Specifications
Originally designed for aerospace systems, this bearing now serves a broader industrial market. With a size range from 4 mm to 670 mm and an operating temperature from -55°C to 950°C, it withstands demanding mechanical stress and extreme thermal cycles. Used in equipment sourced from gear manufacturing and bearing supplier networks, the bearing structure supports dynamic oscillation and misalignment without compromising mechanical stability.

Expanded Industrial Applications
The product meets quality expectations of sectors traditionally served by bearing suppliers and custom gearbox manufacturers. Common applications include aircraft landing gear systems, missile mechanisms, rotor hubs, and automotive transmission joints. Beyond aerospace, it functions reliably in robotic joints and construction machinery, making it a key part in systems involving gearbox suppliers and bearing wholesale channels.

Product Advantages

Maintenance-Free Operation: Engineered with self-lubricating materials, the bearing eliminates the need for external lubrication. This feature benefits industries served by bearing wholesalers and gearbox manufacturing, especially where access is limited or consistent maintenance is impractical. The dry-film coatings or PTFE liners sustain function across load and temperature extremes.
Extreme Environment Resistance: Designed to perform in environments with high oscillation frequency, heavy loads, and temperature shifts, the bearing supports stable motion in vacuum conditions, high-altitude platforms, and outdoor machinery. These demands align with expectations from bearing manufacturing company clients and custom gearbox suppliers, who often require performance beyond standard operating parameters.
Broad Dimensional Compatibility: Available in a wide size range (4 mm to 670 mm), this bearing offers flexibility for integration across aerospace, automotive, and robotic equipment. Its size range makes it suitable for orders from ball bearing manufacturers and rod end bearing suppliers, supporting standard and custom-fit applications with minimal design modification.

About Us

AroroTech, based in Chongqing, China, is a manufacturer focused on transmission machinery components including bearings, gearboxes, reducers, and accessories. With a long-standing presence in the mechanical industry, we offer comprehensive in-house services for gear manufacturing and bearing manufacturing across various sectors, including construction, automation, and aerospace.

The company maintains advanced production capabilities, from CNC precision grinding to heat treatment and spherical finishing. Testing and quality control cover vibration analysis, fatigue life, and environmental simulation. Our strength in bearing manufacturing company operations and gearbox manufacturing integration ensures consistent production for global clients, including OEM and specialized industrial equipment developers.

FAQ

What sizes are available for the self-lubricating spherical bearing?
Sizes range from 4 mm to 670 mm, supporting systems used by bearing wholesalers and gear-based assemblies.

What temperature range can the bearing withstand?
It operates between -55°C and 950°C, suitable for applications sourced by gearbox suppliers and aerospace clients.

What lubrication technology is used?
Options include PTFE fabric liners, PTFE composites with fillers, and solid lubricant coatings, aligning with bearing manufacturer specifications.

Can this bearing be used outside aerospace applications?
Yes, it is widely used in construction, automotive, and automation—markets typically supported by bearing wholesale and custom gearbox suppliers.

Is customization supported?
Yes, AroroTech supports drawings-based customization, commonly requested by rod end bearing suppliers and mechanical system developers.

Submit your specification to equip aerospace or industrial systems with durable spherical bearings today!
