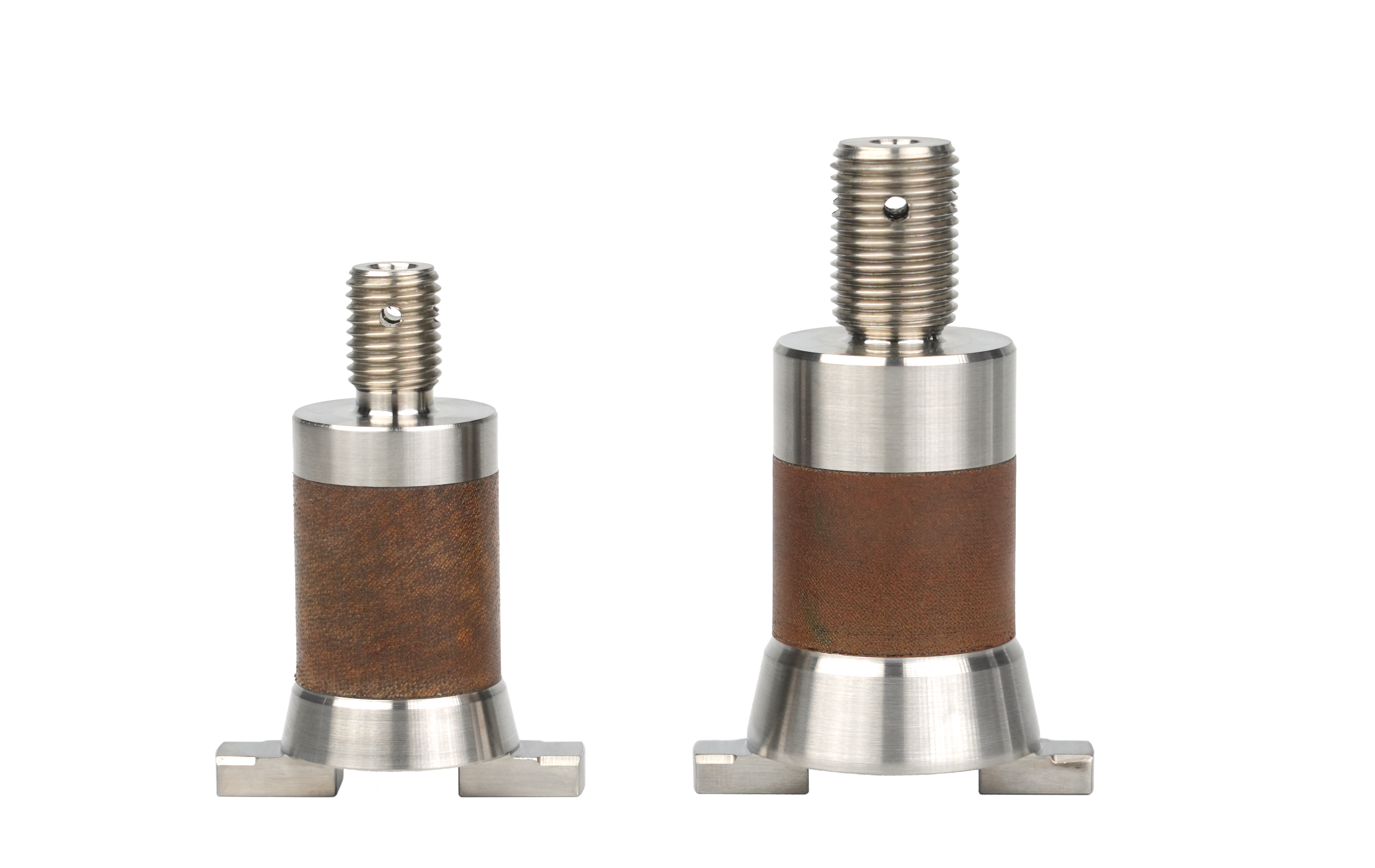

Self-lubricating Tapered Pin

Materials and Manufacturing:

  High-strength substrate:  We commonly use high-strength alloy steel 300M, 4340 and titanium to meet aviation strength and weight requirements. To offer low friction and high wear resistance, we chose PTFE/Nomex fiber for Self-lubricating layer.

  Graphite/metal composites: Suitable for higher temperature environments.

  Surface treatment: Substrates are often plated (e.g., cadmium) or phosphated for high corrosion resistance.

   Self-Lubricating Properties

     Maintenance-free: Eliminates the need for periodic relubrication required by traditional metal bushings, avoiding potential grease leakage that could contaminate systems (e.g., brakes) or airframe surfaces.
     High reliability: Prevents failures caused by insufficient lubrication, such as seizing or accelerated wear.
     Environmental adaptability: Performs reliably in extreme conditions including high/low temperatures, vacuum (space), and high humidity, where conventional lubricants may freeze, evaporate, or degrade.
   Tapered Design:  Precise fit and zero-clearance connection: Interference fit between the tapered pin and hole eliminates radial clearance, critical for flight   control systems to avoid response lag and free play.
 Vibration resistance: Securely locks in place under high vibration without requiring additional locknuts or over-tightening.
 Ease of installation and removal: Allows precise control of fit tightness via insertion depth or nut tension, simplifying maintenance.

   Application
  These pins are commonly used to connect and secure critical structures and control surfaces in aircraft, including:

   Flight Control Systems

    Push-pull rods: Connecting control sticks (or actuators from flight control computers) to control surfaces (e.g., ailerons, elevators, rudders). These joints must withstand high actuation forces while allowing slight angular changes.
   Hinge supports: Used as pivot pins in control surface hinge brackets.

   Engine Mounts and Pylons
  Attaching engines to wing or fuselage pylons. The pins endure vibration and slight displacements from engine operation while providing self-lubrication to avoid lubricant evaporation or contamination in high-temperature environments.

    Landing Gear Systems
     Widely used in retraction mechanisms, torque links, and steering systems. These high-load, high-motion components are exposed to harsh conditions, making self-lubrication essential.

   Doors and Access Panels
   Hinges and locking mechanisms for belly doors, gear bay doors, and access panels, ensuring long-term reliability without maintenance.

   Rotor Systems (Helicopters)
   Critical components in main and tail rotor hinges—including flapping, drag, and pitch hinges—enabling complex blade movements.
