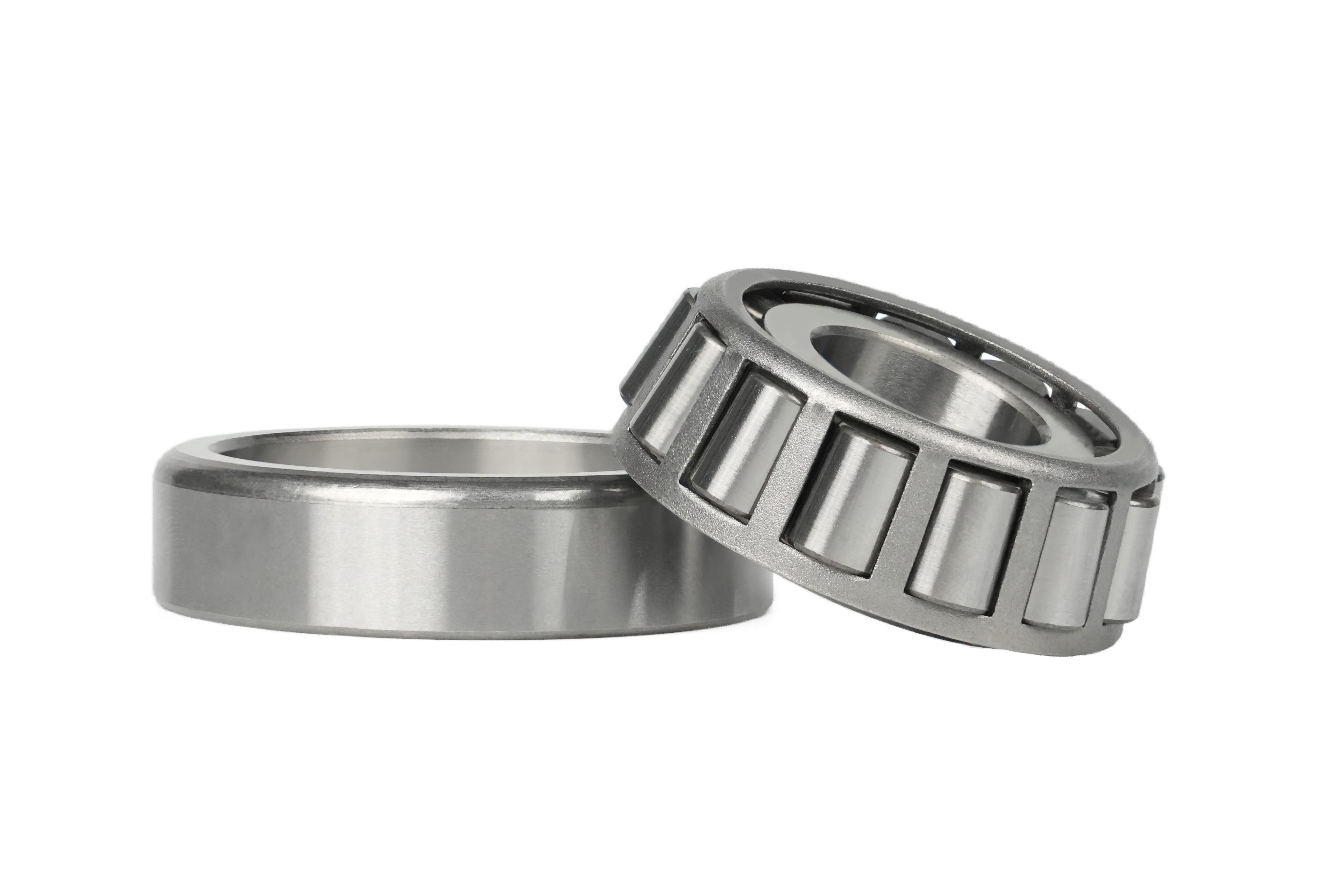

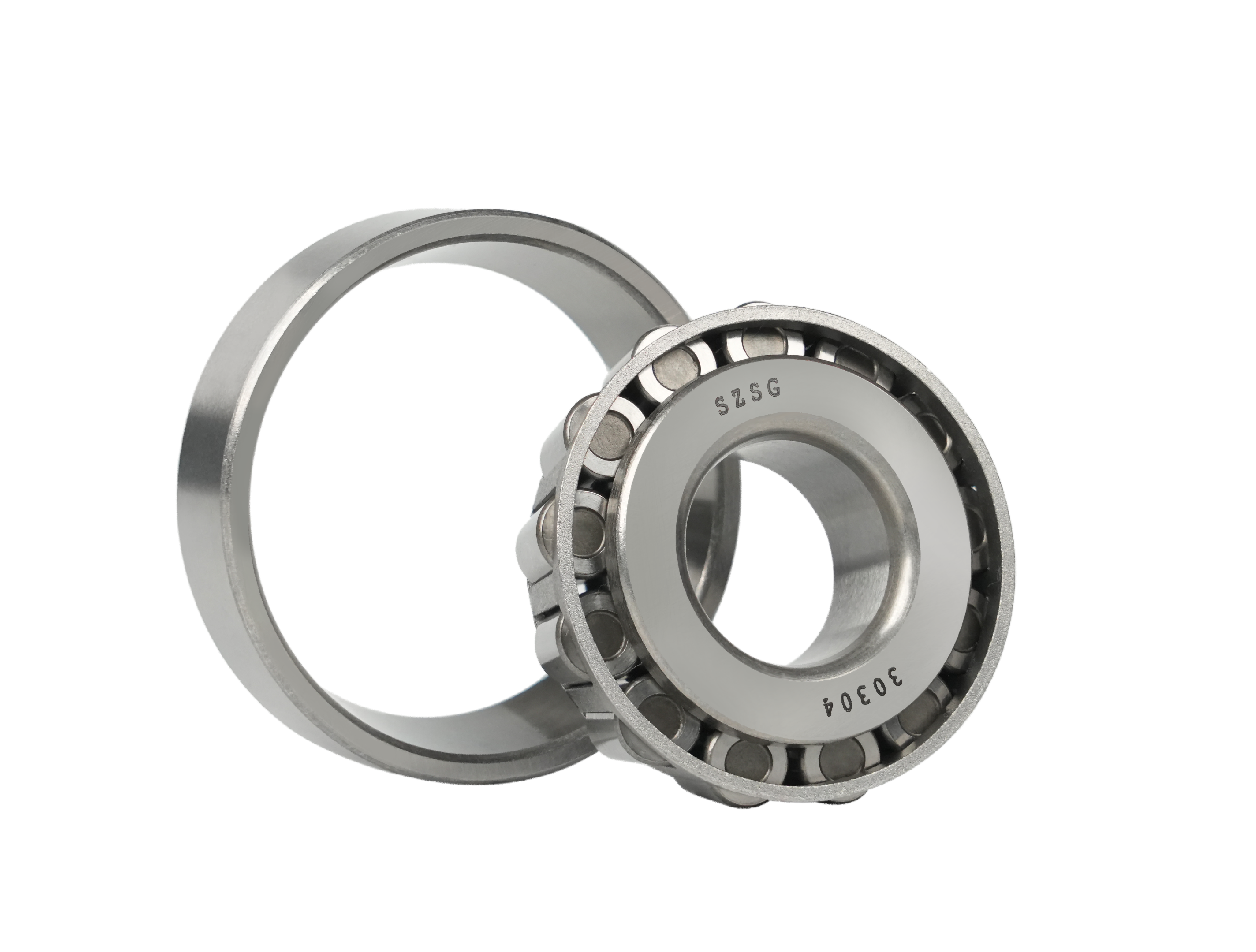

The tapered roller bearing is a separable bearing, meaning its inner ring, outer ring, and roller assembly (cage and rollers) can be mounted separately. Its core characteristics stem from its unique geometric design: both the rollers and raceways are conical, and the apexes of all cones converge at a common point on the bearing axis. The aerospace industry imposes extreme and demanding requirements on bearings: utmost lightweight design, ultra-high reliability, resistance to high and low temperatures, adaptability to vacuum environments, and long life with minimal maintenance. Due to their unique advantages, tapered roller bearings have found indispensable applications in certain critical parts of spacecraft.
|
The most prominent feature of tapered roller bearings is their exceptional combined radial and axial load capacity. Due to the conical structure, the rollers make line contact with the inner and outer ring raceways, enabling them to simultaneously withstand loads from the radial (perpendicular to the shaft) and axial (along the shaft direction) directions. Their axial load capacity increases with the contact angle (the angle between the outer ring raceway and the bearing axis). These bearings are typically used in paired arrangements, offering high rigidity. The separable design of the inner and outer rings also facilitates adjustment and installation. Additionally, these bearings have a long service life. |
Materials: We typically use high-performance bearing steels (such as CSS-42L, Cronidur 30) or high-temperature alloys. These materials undergo special heat treatment processes, resulting in ultra-high purity, high strength, and high corrosion resistance. The machining precision for these bearings must achieve ultra-precision grade to ensure smooth operation, low and consistent friction torque. Regarding lubrication, perfluoropolyether (PFPE) space grease, solid lubricant coatings, or composite material cages are used depending on the specific operating conditions. The production of these bearings must be carried out in an ultra-clean environment to ensure the absence of contaminants. They are also equipped with special low-torque, high-reliability seals to prevent lubricant leakage and the intrusion of foreign matter. Our producible size range: ID: 1.5~200mm, Temperature: -196~650 degrees Celsius. |
 |
|
Applications
Although ceramic ball bearings are more commonly used in high-speed scenarios, tapered roller bearings are crucial in the following aerospace mechanisms that require bearing enormous combined loads without extremely high rotational speeds. Rocket Engine Turbopump: The significant axial thrust generated during engine operation (especially the reaction force from the pumped medium) requires bearings to withstand it. The superior combined load capacity of tapered roller bearings makes them an ideal choice. Spacecraft Solar Array Drive Assembly (SADA): Once deployed, the solar array generates considerable inertial moments and vibrational loads. Tapered roller bearings provide stable support to resist these moments. Robotic Arm Joints: The operating conditions of robotic arm joints are similar to those of SADA, requiring high rigidity, high load capacity, and precise adjustability. Tapered roller bearings are core components supporting the joints and ensuring their motion stiffness and accuracy. Lander and Rover Suspension and Wheel Hubs: Exploration vehicles, such as Mars rovers, require bearings in their wheel drive and suspension systems to support the vehicle's weight and endure the shocks and vibrations from driving over rough terrain. |
|
WHY US 46 years of experience in aerospace and precision bearing R&D. Trusted raw materials: 80% sourced from leading U.S. and European steel and aluminum suppliers. Extremely inspection: we conduct extremely rigorous ground simulation tests on every aerospace bearing using imported inspection equipment, including life tests, vibration tests, thermal vacuum tests, and torque tests, to verify their fail-safe operation in the space environment. Advanced manufacturing: Equipped with high-temperature alloys (e.g., M50NiL) and Si3N4 ceramic balls, plus state-of-the-art lubrication technologies. Certified quality: Meeting aerospace and aviation industry standards for safety and reliability. Custom solutions: Tailored bearings for global OEMs, distributors, and aerospace projects. |
